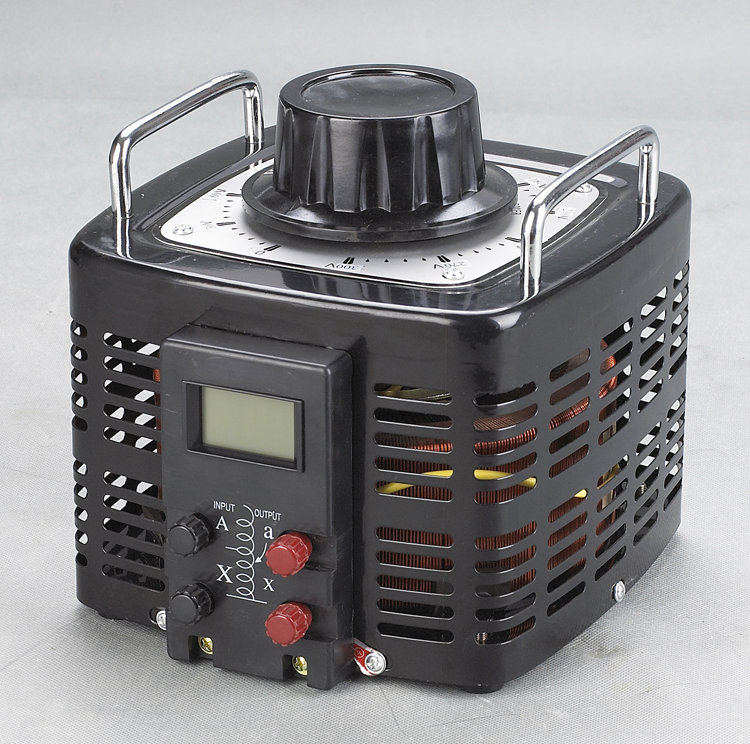

TDGC single phase voltage regulator
GENERAL
TDGC,TSGC series voltage regulators,can successively adjust the output voltage,with the features of no wave from distortion,small volume,light weight,high efficiency,convenient use,reliable performance.
APPLICATION
It can be applied in industry,scientific experiment,public facilities and domestic appliances to achieve the goal of voltage regulating,temperature controlling light,regulating and power controlling.
TECHNICAL INDEX
|
Phase No. |
1 |
3 |
|
Frequency |
50Hz |
50Hz |
|
Rated input voltage |
220V |
380V |
|
Output voltage range |
0-250V |
0-430V |
MODEL,VOLUME AND WEIGHT
|
Model |
Rated capacity(KVA) |
Rated output current(A) |
|
TDGC-0.5 |
0.5 |
2 |
|
TDGC- 1 |
1 |
4 |
|
TDGC- 2 |
2 |
8 |
|
TDGC- 3 |
3 |
12 |
|
TDGC- 5 |
5 |
20 |
|
TDGC- 7 |
7 |
28 |
|
TDGC- 10 |
10 |
40 |
|
TDGC- 15 |
15 |
60 |
|
TDGC- 20 |
20 |
80 |
|
TDGC- 30 |
30 |
120 |
|
TDGC- 50 |
50 |
200 |
|
TSGC-3 |
3 |
4 |
|
TSGC-6 |
6 |
8 |
|
TSGC- 9 |
9 |
12 |
|
TSGC- 15 |
15 |
20 |
|
TSGC- 20 |
20 |
27 |
|
TSGC- 30 |
30 |
40 |
|
TSGC-45 |
45 |
60 |
|
TSGC- 60 |
60 |
80 |
|
TSGC- 90 |
90 |
120 |
|
TSGC- 150 |
150 |
200 |
