Benefit your drive application from innovation
>>More advanced technology
| >>More benefits
| |
Compact structure design | Lower installation cost | |
>smaller in size | >Applicable in more occasions | |

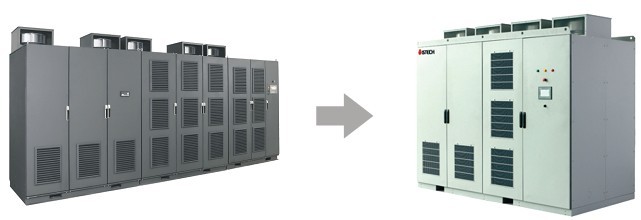

First -generation Product | Second-generation Product | |
Product advantages | Enhance productivity | |
>Long-life components >Best specification selection > Approved control | > Reduce manufacturing and maintenance cost >Improve reliability and operation consistency | |
High quality | High reliability | |
Enhance overload capacity | Ensure safe production | |
> Solve the problem of motor short -term stall caused by conditions load mutations > The drive can resist short -timerated voltage for 1 minute andrated voltage for 3 seconds dramatic changes | > Enhance productive consistency > Reduce driver fault probability |
Efficient, fast speed start | Improve production efficiency | |
>Rotating start, no need to wait for motor to stop >T racking process costs 3-5 seconds, 10 times faster than traditional technology | >Reduce maintenance time | |
Speed start oscillogram | Speed start timing diagram | |
Fast dynamic response ability | Improve production crafts | |
>Especially suitable for situations that are demanding on acceleration and deceleration time | >Reduce production crafts time | |
Largest current limit | current limit timing diagram | |
Optimized multi-level technology | No interference on motor and drive load | |
>Perfect sine wave output current without filter >No harmonic and no voltage stress on motor and cables | >Prolong motor life-span >Widely used in new-type and old motor reform >Increase transmission cable length | |
Excellent PWM Modulation T echnology | Prolong equipment life-span | |
>"double octave modulation" technology, 50% less IGB T switch loss >Realize low harmonic effect, equivalent to traditional modulation technology | > Enhance life-span of key components >Reduce maintenance cost | |
User-friendly interface | Simple operation | |
> Simple operation >Flexible operation |
Professional and timely technical support and ser vice
We apply our industrial automation ability to the service area and ensure your success.
Service specialist around you at any time.
> Maximum return from invest
>Optimize its value during the equipment's life-span
Relevant service with a wide range of content
Consulting service:
> T echnical communication
>Energy-saving assessment
>Program customization
Installation and start:
> Hand-over of technical information
>Installation and commissioning
After -sales ser vice:
> Maintenance
>Regular troubleshooting
Customize project management:
Customize training:
24-hours hot line service:
Efficient, Energy-saving
Frequency transformation of fans and pumps i s real ized by adjusting motor rotation speed to replace traditional air door and baffles. I ts energy-saving principl e is as below:

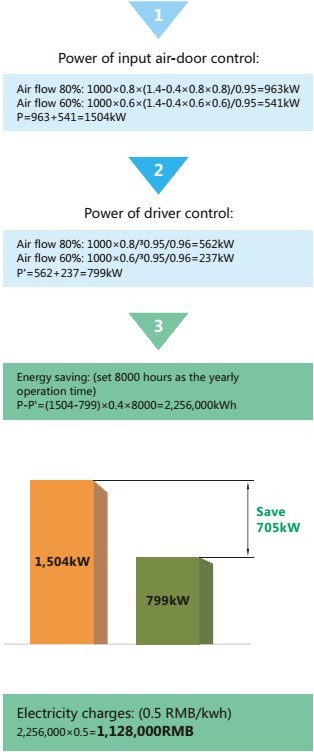

Take the example of fans in cement plant:

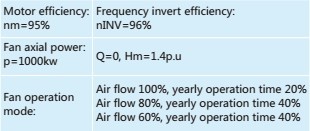

Calculation conditions: H-Head Baffle control under the rated motor rotation speed (air flow change from 100% to 80%) H-Head Drive control under the rated motor rotation speed (airflow change from 100% to 80%) | Note: Above calculation is only an example. Actual energy saving is based on on-site process. 06 07 |

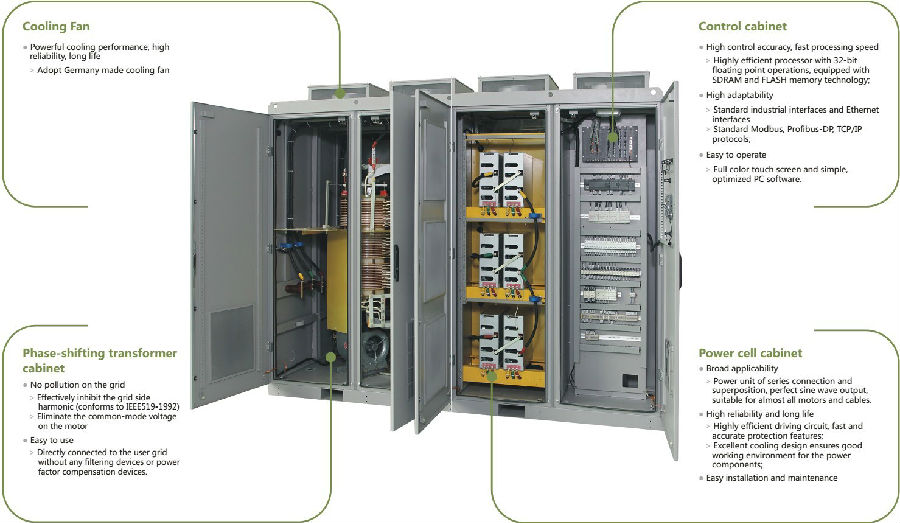

System components

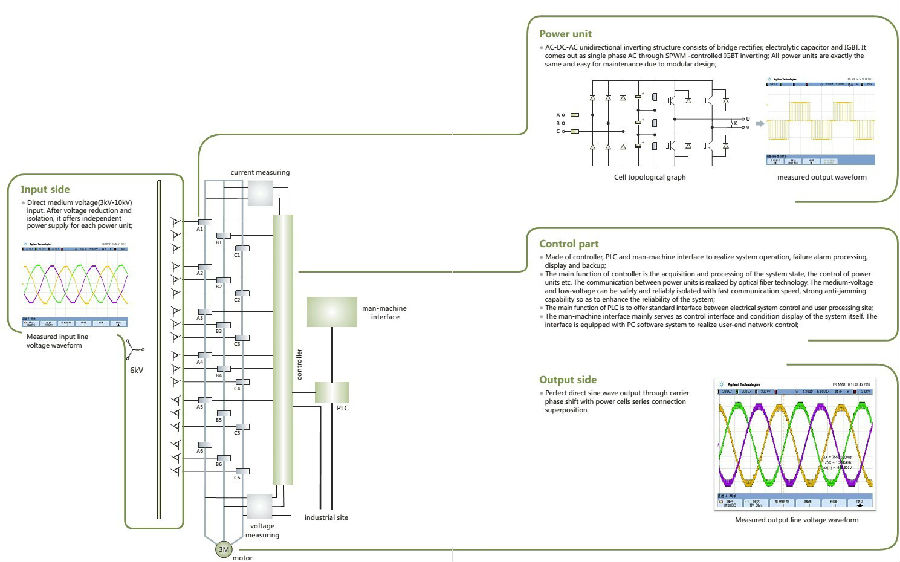

The principle of medium-voltage
frequency control system
1.IDrive2000medium-voltagefrequencycontrolsystem
topologymapisasbelow(Bypasscabinetcanbeoffered
aspercustomer'srequirements)AC-DC-ACfrequency
inver ter ;
2."powerunitseriesconnectionsuperposition".Itadopts
matureandreliablelow-voltageinver tingstructureto
realize direct medium-voltage output;
