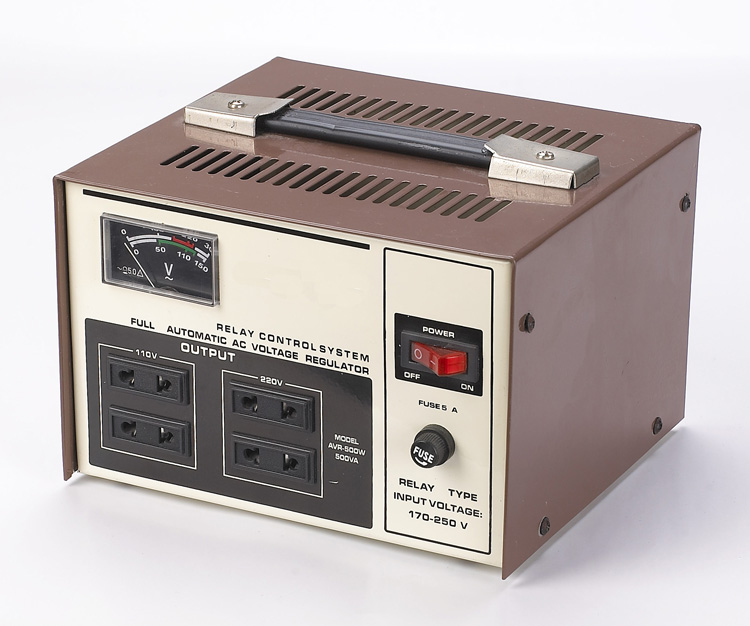

FavouriteAVR series avr voltage stabilizer
Feature
This series automatic voltage regulator is a kind of delay control stabilizer,it owns wide input voltage range,compact size,light in weight,delay output,little wave distortion and reliable,strict design and accurate assemble.This kind of stabilizer can add voltage regulating function also.
Technical Features
1.Input voltage:150-270V
2.Output voltage:220V+/-8% 110V+/-10%
3.Delay output time:3-7 min /3-7 sec
4.Frequency:50/60Hz
Model |
Power |
AVR-500VA |
AVR - 1000VA |
AVR - 1500VA |
AVR -2000VA |
AVR - 3000VA |
AVR - 5000VA |
Input |
Phase |
Single Phase |
|||||
Voltage |
AC150-270V |
||||||
Frequency |
50Hz/60Hz |
||||||
Output |
Voltage |
220V+/-8%,110V+/-10% |
|||||
Efficiency |
98% |
||||||
Frenquency |
50Hz/60Hz |
||||||
Over voltage protection |
AC246V+/-4V |
||||||
Protection |
Under-volt |
Optional |
|||||
Over-volt |
Optional |
||||||
Over heat |
Optional |
||||||
By pass |
No |
||||||
Delay |
3-7min/3-7sec |
||||||
Over load/short circuit |
Yes |
||||||
Environment |
Operating temperature |
-10~40℃ |
|||||
Storage temperature |
-15~45℃ |
||||||
Humidity |
20% to 90% |
||||||
Packing |
Pcs/carton |
4 |
4 |
4 |
1 |
1 |
1 |
Machine size(cm) |
19*17.5*14 |
19*17.5*14 |
21.5*19.5*17 |
24*29.5*19.5 |
23.5*30.2*23.5 |
23.5*30.2*23.5 |
|
Package dimension(cm) |
42*24*33 |
42*24*33 |
49*26.5*38.5 |
29*34*23 |
29*34*26 |
29*34*36 |
|
