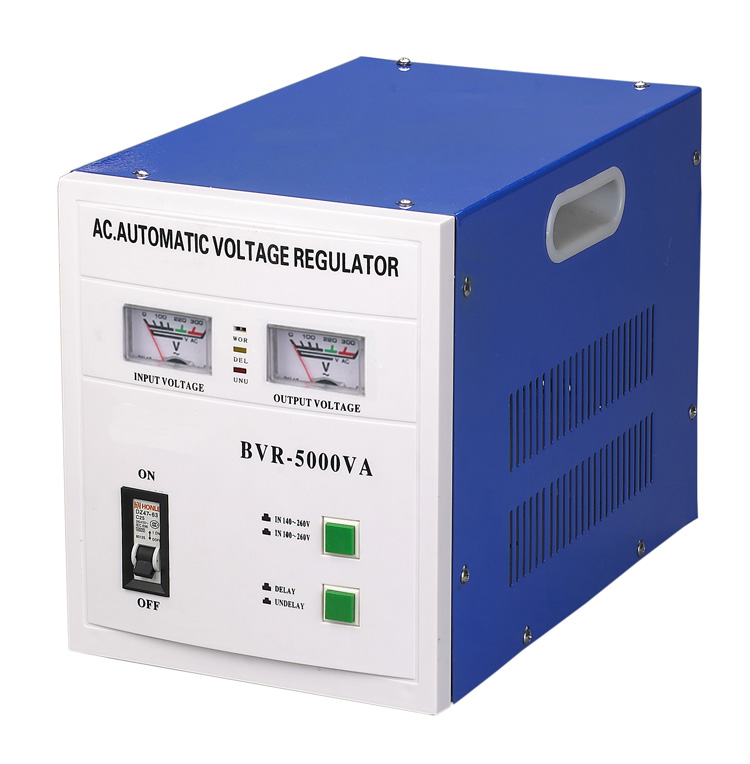

BVR-5K
Category：BVR

BVR series voltage stabilizer
Specifications

BVR RELAY TYPE VOLTAGE STABILIZER
1.INPUT VOLTAGE :140V-270V
2.OUTPUT VOLTAGE:220+/-3%
3.EFFICENCY:98%
4.DELAY 3-7SEC

BVR RELAY TYPE VOLTAGE STABILIZER



This series automatic voltage regulator is a kind of relay control stabilizer,it owns the wide input voltage range,compact size,light in weight,delay output,little wave distortion and reliable,strict design and accurate assemble.this kind of stabilizer can add voltage regulating function also.In one word,this type stabilizer is very popular in overseas for the competitive and stable performance.

Technical Features
1. Input voltage:150-270V
2. Output voltage:220V±8% 110V±10%
3. Delay output time:3-7min/3-7sec
4. Frequency:50HZ/60HZ



Model

Requirements

Model 1

Model 2

Model 3

Model 4

Model 5

Model 6

Power(VA)

BVR-500VA

BVR-1000VA

BVR-1500VA

BVR-2000VA

BVR-3000VA

BVR-5000VA

Input

Phase

Single phase

Voltage

AC150V-270V

Frequency

50HZ/60HZ

Output

Phase

220V±8% 110V±10%

Voltage

98%

Frequency

50HZ/60HZ

Over voltage protection

AC 246V±4V

Protection

Under-volt

Optional

Over-volt

Optional

Over heat

Optional

By pass

No

Delay

3-7min/3-7sec(optional)

Over load/short circuit

yes

Environment

Operating temperature

-10~40°C

Storage temperature

-15~45°C

humidity

20% to 90%
