Application
1.Can be used in Zone 1 and Zone 2 dangerous places.
2.Can be used in IIA、IIB、IIC group explosive atmosphere.

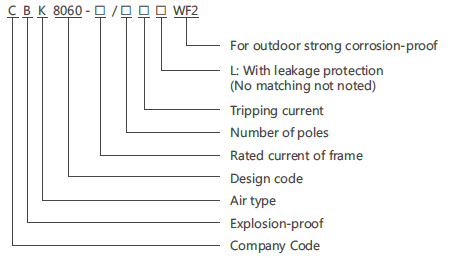

Model Implication

Features
1.The products are combined type, the shell is made of glass-fiber and unsaturated
polyeser-resin, inner circuit breaker is our company's special explosion-proof
element, the shell is safety-increased structure, with the excellent functions of
water-proof,dust-proof and impulsion withstanding, because the main
components all use enginering plastic, it has the function of strong corrosionproof.
2.The product uses scientific optimized design, light and compact structure, but
there is big space for the users to install and connect, maintain.
3.With the protection of overload, and short-circuit, it can add the protection off
leakage according to the demand
4.Suitable for steel pipe and cable wiring.
5.Suitable for GB3836-2000, IEC60079 standard request.
