Application
1.Can be used in Zone 1 and Zone 2 dangerous places.
2.Can be used in IIA、IIB group explosive atmosphere.

Notice: Please note if need IIC group.

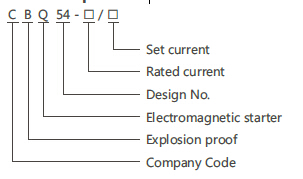

Model Implication

Features
1.Diecasted Al-alloy shell with Plastic-sprayed surface.
2.lnside is installed AC contactor, thermat relay, self-setable conversion swit h.
3.Able to directly control AC 50Hz,380V asynchronous motor with the protection of
overload, short-circuit, phase-failure voltage-absent.
4.Able to remotely control.
5.Suitable for both steel pipe and cable wiring
6.Suitable for GB3836-2000, IEC60079 standard request.
