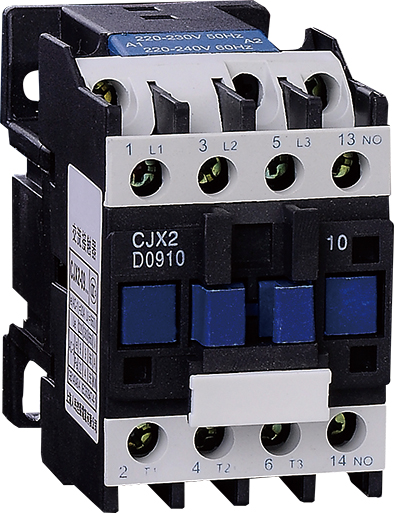

FavouriteCJX2-D Series AC Magnetic Contactor
1.Application
CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 stardand.
2. Specification
Type |
Rated current AC-3(A) |
Controlled power |
||||
220V |
380V |
415V |
440V |
660V |
||
TLC1-D09N |
9 |
2.2 |
4 |
4 |
4 |
5.5 |
TLC1-D12N |
12 |
5.5 |
5.5 |
5.5 |
5.5 |
7.5 |
TLC1-D18N |
18 |
7.5 |
7.5 |
9 |
9 |
10 |
TLC1-D25N |
25 |
5.5 |
11 |
11 |
11 |
15 |
TLC1-D32N |
32 |
7.5 |
15 |
15 |
15 |
18.5 |
TLC1-D40N |
40 |
18.5 |
18.5 |
22 |
22 |
30 |
TLC1-D50N |
50 |
15 |
22 |
25 |
25 |
33 |
TLC1-D63N |
63 |
18.5 |
30 |
37 |
37 |
37 |
TLC1-D80N |
80 |
22 |
37 |
45 |
45 |
45 |
TLC1-D95N |
95 |
22 |
45 |
45 |
45 |
41 |
TLC1-D115N |
115 |
30 |
55 |
59 |
59 |
80 |
TLC1-D170N |
170 |
55 |
90 |
100 |
100 |
110 |
TLC1-D205N |
205 |
63 |
110 |
110 |
110 |
126 |
TLC1-D245N |
245 |
75 |
132 |
132 |
132 |
160 |
TLC1-D300N |
300 |
100 |
160 |
200 |
200 |
220 |
TLC1-D410N |
410 |
110 |
220 |
250 |
250 |
280 |
TLC1-D475N |
475 |
147 |
265 |
280 |
280 |
355 |
TLC1-D620N |
620 |
200 |
335 |
400 |
400 |
450 |
