DER
Category:DER

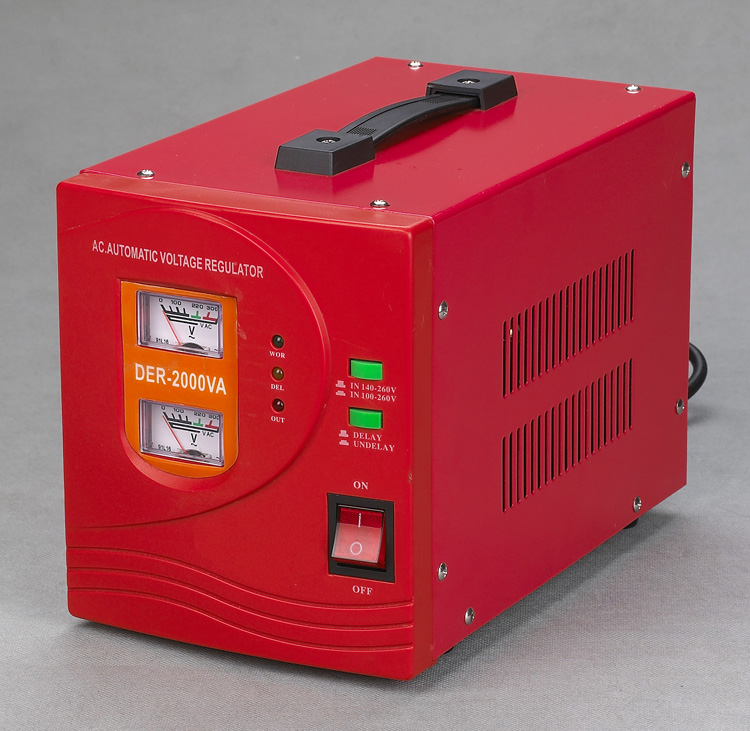

DER relay type voltage stabilizers

Specifications

1.wide input voltage range,compact size,delay output
2:CE,Soncap certification
3:can add voltage regulating function

find DER relay type voltage stabilizers here with compact size,little wave distortion and reliable, strict design
Feature
This series automatic voltage regulator is a kind of delay control stabilizer,it owns wide input voltage range,compact size,light in weight,delay output,little wave distortion and reliable,strict design and accurate assemble.This kind of stabilizer can add voltage regulating function also.
Technical Features
1.Input voltage:150-270V
2.Output voltage:220V+/-8%  110V+/-10%
3.Delay output time:3-7 min /3-7 sec
4.Frequency:50/60Hz

Model

Power

DER-500VA

DER- 1000VA

DER- 1500VA

DER-2000VA

DER- 3000VA

DER- 5000VA

Input

Phase

Single Phase

Voltage

AC150-270V

Frequency

50Hz/60Hz

Output

 Voltage

 220V+/-8%,110V+/-10%

Efficiency

 98%

Frenquency

50Hz/60Hz

Over voltage protection

AC246V+/-4V

Protection

Under-volt

Optional

Over-volt

Optional

By pass

Optional

Delay

3-7min/3-7sec

Over load/short circuit

Yes

Environment

Operating temperature

-10~40℃

Storage temperature

-15~45℃

Humidity

20% to 90%

Packing

 Pcs/carton

 8

 8

  4

4

1

 1

 Machine size(cm)

24.5*11.6*15.7

24.5*11.6*15.7

29*17*22

29*17*22

40*25*29

40*25*29

Package dimension(cm)

48.5*25.5*17.5

48.5*25.5*17.5

35.5*30*46

29*17*22

42*26*31



40*25*29
