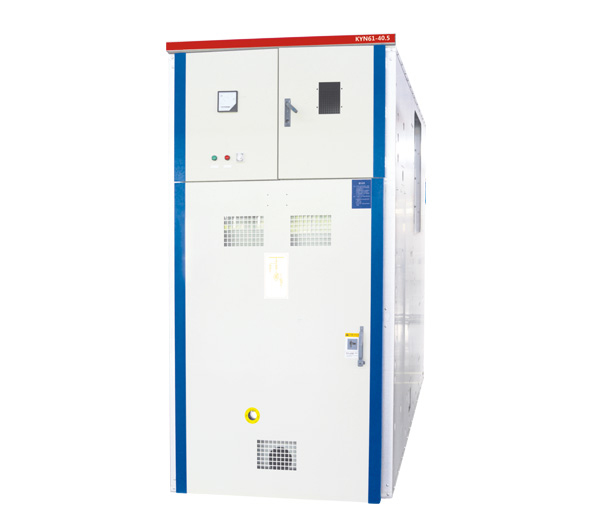

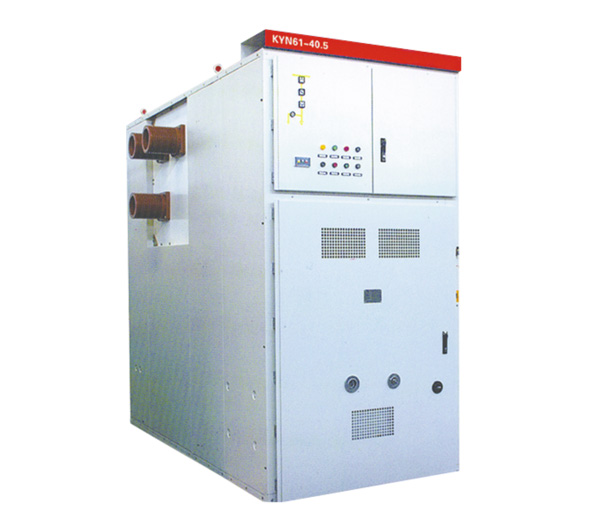

Metalclad AC Enclosed Switchgear

General

1. Ratings: system voltage 40.5kV, rated current up to 3150A, AC 50/60HZ
2.Application: mainly applicable in the power plant, substation, mineral enterprise to receive and
distribute power with the functions of controlling, protecting and monitoring. It also can be used in
places where the frequently operations are in need.
3.Standard: IEC62271-200

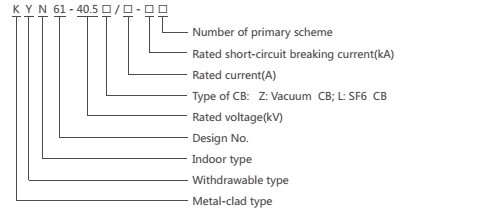

Type designation

Working Conditions

1.Ambient air temperature: -10℃~+40℃
2.Altitude: ≤1000m
3.Relative humidity : Daily average≤95%; Monthly average≤90%
4.Earthquake intensity:≤magnitude 8.
5.Applicable in the places without corrosive and flammable gas.
Note: Customized products are available.
