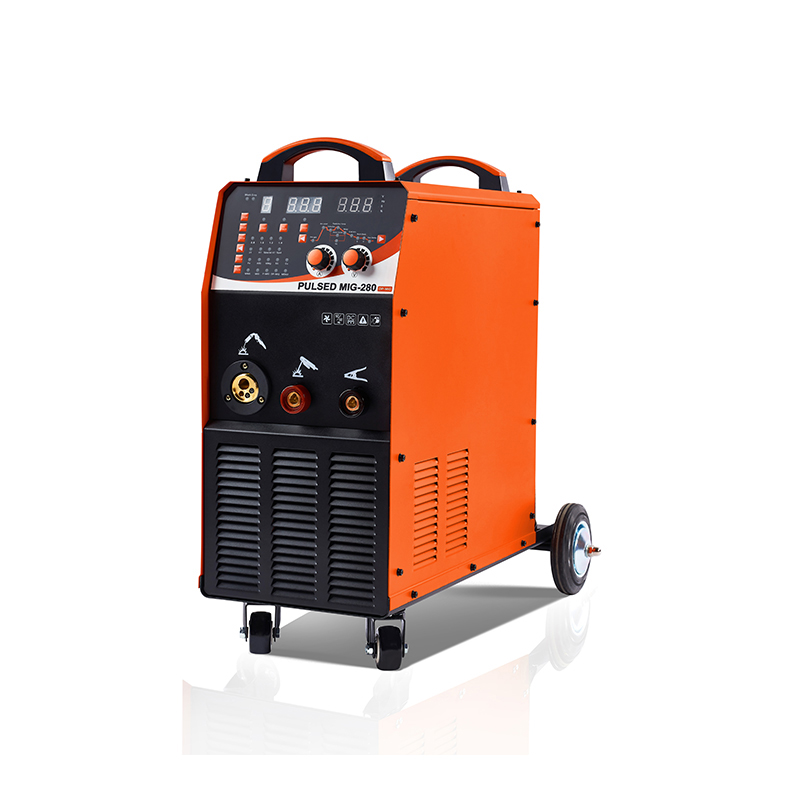

INVERTER PULSED MIG/MAG WELDING MACHINE

1. IGBT Type

■ Soft switching IGBT Module/IGBT Tube tech, Software controlled, Synergic/Without Synergic control.
■ Over heat, over current, over voltage protection built in.
■ Heavy duty cycle design for Medium and Heavy industrial using.
■ Optional: Heavy trolley(3 floors type), Water cooling system. Robotic Connectors.
■ Optional: Shipyard designed, PCB coat, unique fan route designed.
■ Pulsed MIG for low sparking carbon steel welding. Double pulsed MIG for aluminum material welding.
■ Optional: PFC function(1phase 75~275)and(3phase 220~525V); 110/220V, 110V.
■ Optional: Spool gun(100~250A)Aluminum welding.

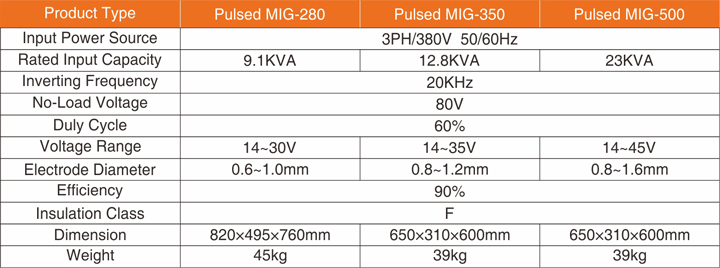

2. Main Technical Parameter

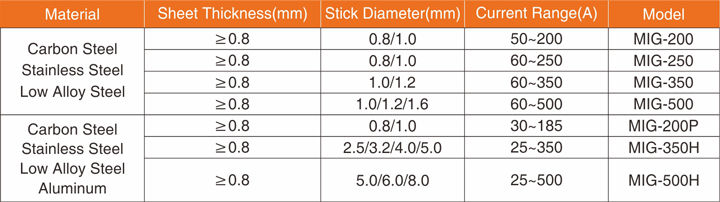

3. Product Selection Guide

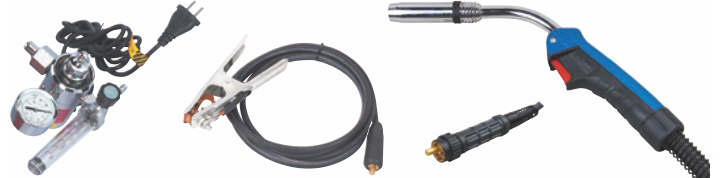

4. Accessories:
Earth clamp×1pcs, cable joint×3pcs, grounding cable×3meters, control cable×1.8meters(only for P-MIG350H/500H), pressure regulator×1pcs, water cooled MIG torch×1pcs(only for P-MIG350H/500H), MIG torch×1pcs(only for MIG-200P), water tank×1set(only for P-MIG350H/500H), wire feeder×1set(only for P-MIG350H/500H), trolley×1pcs(only for P-MIG350H/500H)
