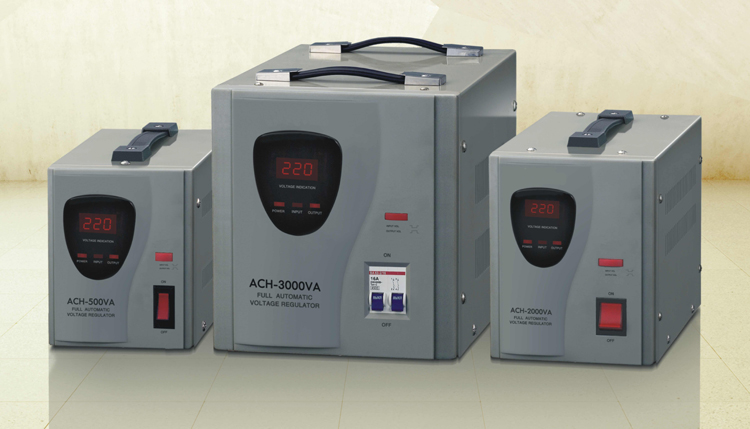

FavouriteACH series logicstat voltage stabilizer
Specifications
AVR-automatic relay type voltage stabilizer
1:Rate capacity:0.5-10Kva
2:CE,Soncap certification
3:Adjusting time:<1S
Voltage stabilizer feature
This series automatic voltage regulator is a kind of relay control stabi lizer,it owns the wide input voltage range,compact size,light in weight,delay output,little wave distortion and reliable,strict design and accurate assemble .
Technical Index
| Input voltage | 150-270V |
Phase |
single-phase |
Frequency |
50-60HZ |
Adjusting time |
<1S(When input voltage has a change of 10%) |
Max of |
0.5KVA 1KVA 1.5KVA 2KVA 3KVA 5KVA 8KVA 10KVA |
Output current |
2A 4A 6.5A 8A 12A 20A 32A 40A |
Protection over voltage |
246±4V |
Delay |
Short Deley3-7 sec long Delay 3-7min |
Ambient temperature |
-5~+40°C |
Temperature rise |
<60°C(full load) |
Relative humidity |
<90°C |
Wave form distortion |
No wave form distortion |
Efficiency |
>95% |
Insulation resistance |
≥2MΩ |
Specifications and Model
| Model | Unit |
Package size(cm |
Weight(kg) |
500VA |
8 |
50×27.5×33 |
2.5 |
1000VA |
4 |
27×29×35.5 |
3.5 |
1500VA |
4 |
27×29×35.5 |
6.3 |
2000VA |
4 |
35.5×30×41 |
8 |
3000VA |
1 |
41.5×27×30 |
10.5 |
5000VA |
1 |
41.5×27×30 |
12.2 |
8000VA |
1 |
46×27×30 |
15.7 |
10000VA |
1 |
46×27×30 |
18.1 |
