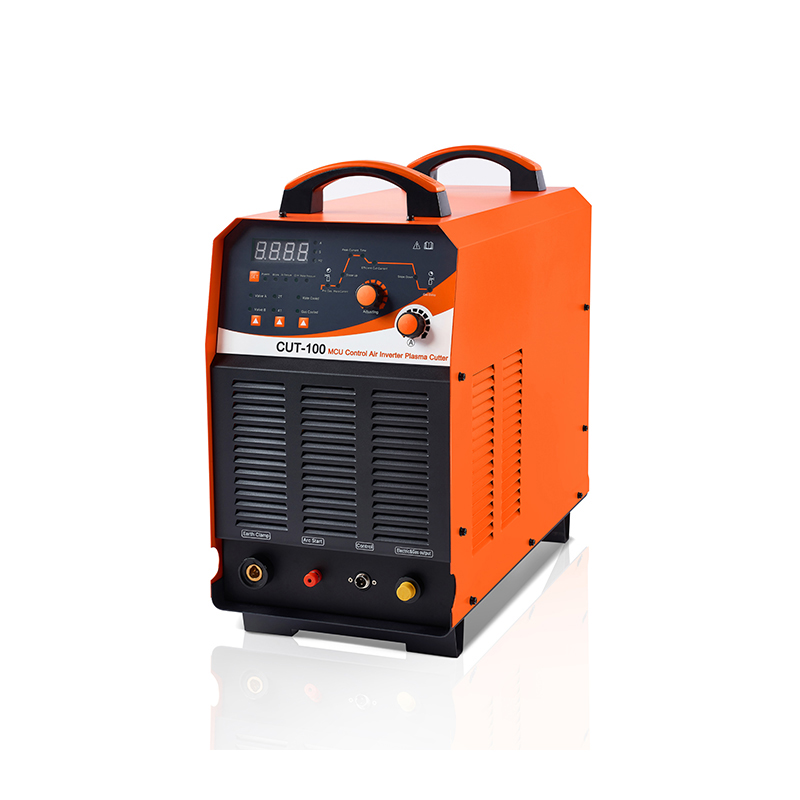

INVERTER DC AIR PLASMA CUTTER

1. IGBT Type

■ Soft switching IGBT Module/IGBT Tube tech, Software controlled, Synergic/Without Synergic control.
■ Over heat, over current, over voltage protection built in.
■ Heavy duty cycle design for Medium and Heavy industrial using.
■ Optional: Heavy trolley(3 floors type), Water cooling system. Robotic Connectors.
■ Optional: Shipyard designed, PCB coat, unique fan route designed.
■ Optional: PFC function(1phase 75~275)and(3phase 220~525V); 110/220V, 110V.
■ Optional: cold TIG welding/micro TIG welding.

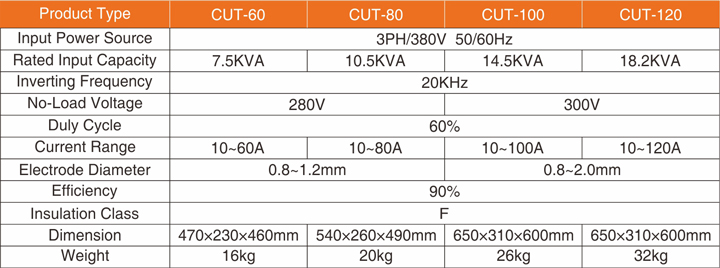

2. Main Technical Parameter

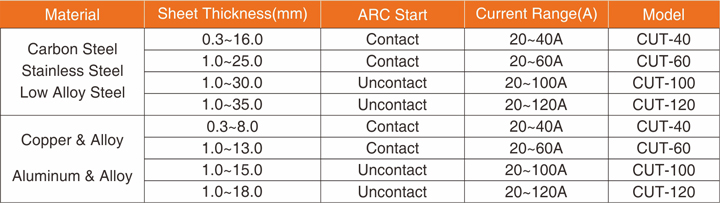

3. Product Selection Guide

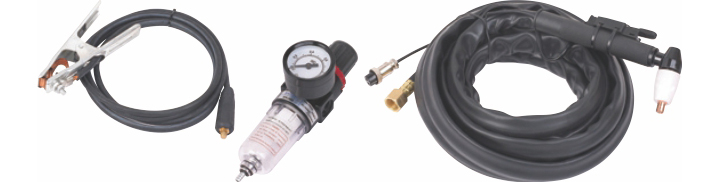

4. Accessories:
Earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, gas hose×0.6meter, hose hoop×3pcs, cutting torch×1pcs
