INVERTER DC AIR PLASMA CUTTER

1. IGBT Type

■ Touch start system-smooth arc-striking with HF control.
■ Compact and portable, high efficiency and energy saving.
■ Excellent cutting capacity high cutting speed and low cost.
■ Automatic post-flow stop for rapid re-striking.
■ Adjustable output current to satisfy the cutting demands based on different kinds of material and thickness of working plate.
■ Small and smooth cutting seam, little transmutation.
■ Built-in overheat protection, over voltage protection under voltage protection.
■ Energy Saving-Compared with the traditional cutting machine more efficient.

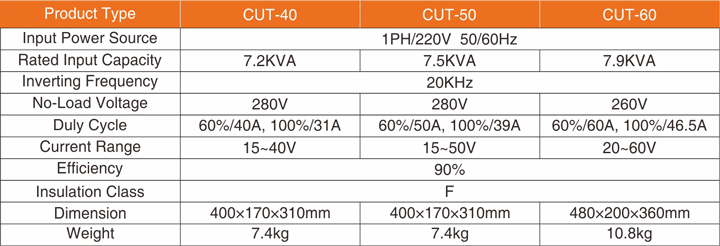

2. Main Technical Parameter

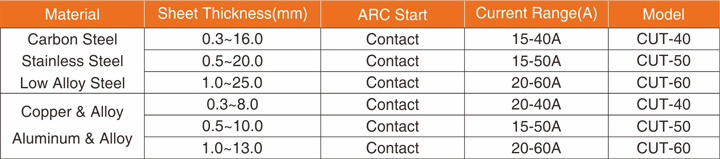

3. Product Selection Guide

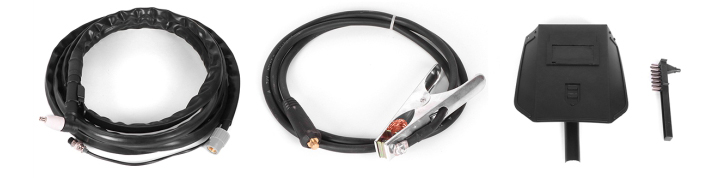

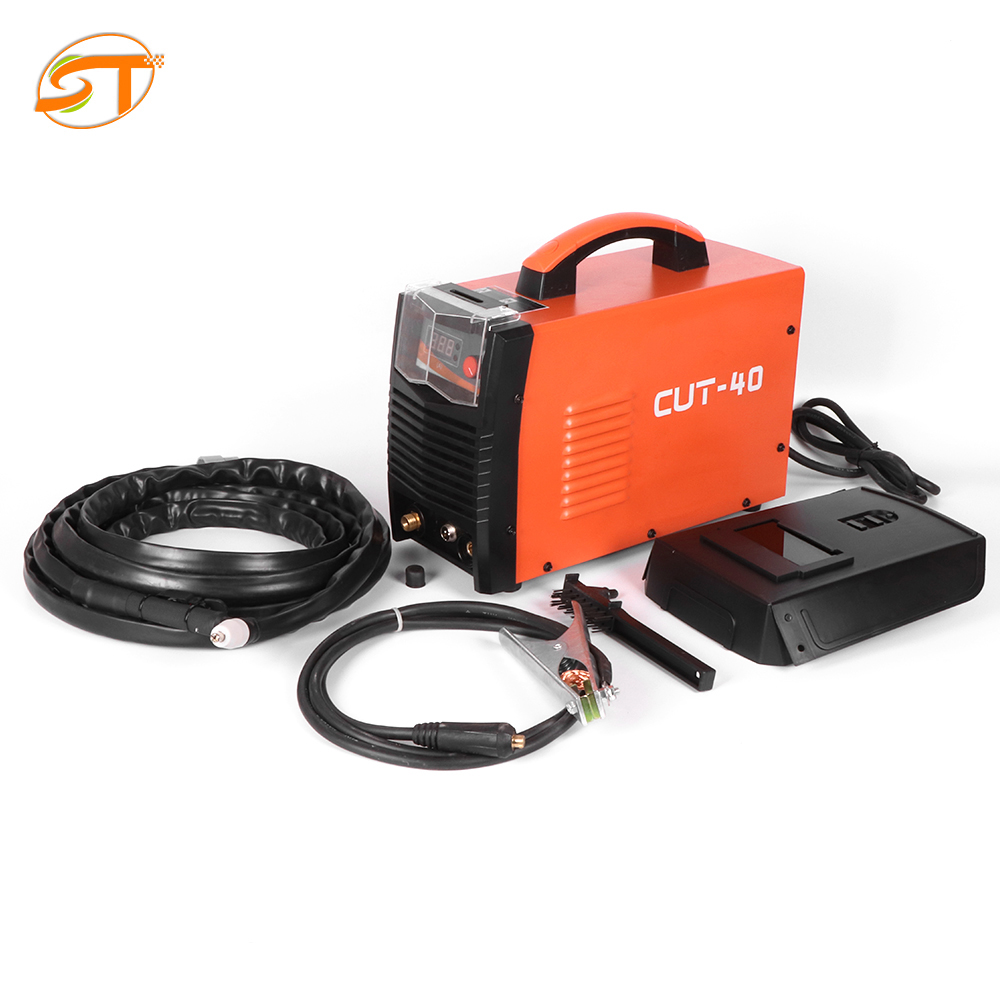

4. Accessories:
PT31 cutting torch ×4m, ground cable×2m, mask×1pcs, brush×1pcs
