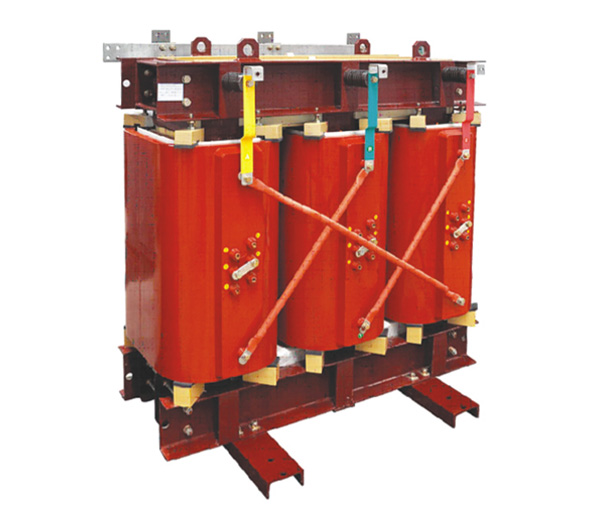

SC(B)H15 Three Column Amorphous


General

SCBH15 series amorphous alloy Dry-Type transformer has advanced performance in following points: low no-load loss, fire resistance and self-extinguishing, moisture resistance and maintenance-free. This series product can be applied in any place where the common dry-type transformer worked, such as airport, bus station, urban subway, high-rise construction and power station. And SCBH15 transformer can especially appropriate to be used in the energy-shortage and combustible, explosive places.

Implementation of the standards

GB 1094.11-2007 GB 1094-1996 GB/T22072-2008 GT/T17211-1998
JB/T 10088-2004 GB 4208-1993 IEC72

Models and meaning


Main technical parameters

1.Phase number: tree-phase
2.Voltage level: Primary side voltage:10kV Secondary side voltage: 0.4kV
3.Frequency: 50Hz
4.Connection symbol : Dyn11、Yyn0 or according to the specific requirements
5.Cooling method: self cooling or forced air cooling
6.Operating environment: altitude≤ 1000m, max relative humidity 100%, ambient temperature should below 40℃
7.Insulation endurance class: F
8.Winding temperature rise: 100K



1. Function
This mine explosion-proof type integrated protective device is applicable in underground
coal mines with explosive and dangerous gas(methane)and coal dust, and it is used for
remote control of 127V hand-held electric coal drill.

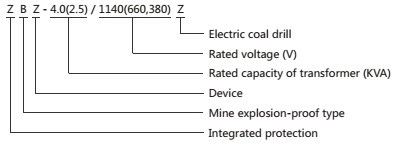

2. Model



3. Characteristics
3.1 With protective functions of short circuit, leakage lockout, leakage action etc.
3.2 This device adopts leader loop, which can start, operate or stop electric coal drill in
remote distance, and the cable is not electrified when the drill doesn't work, so it is safe
and reliable.
