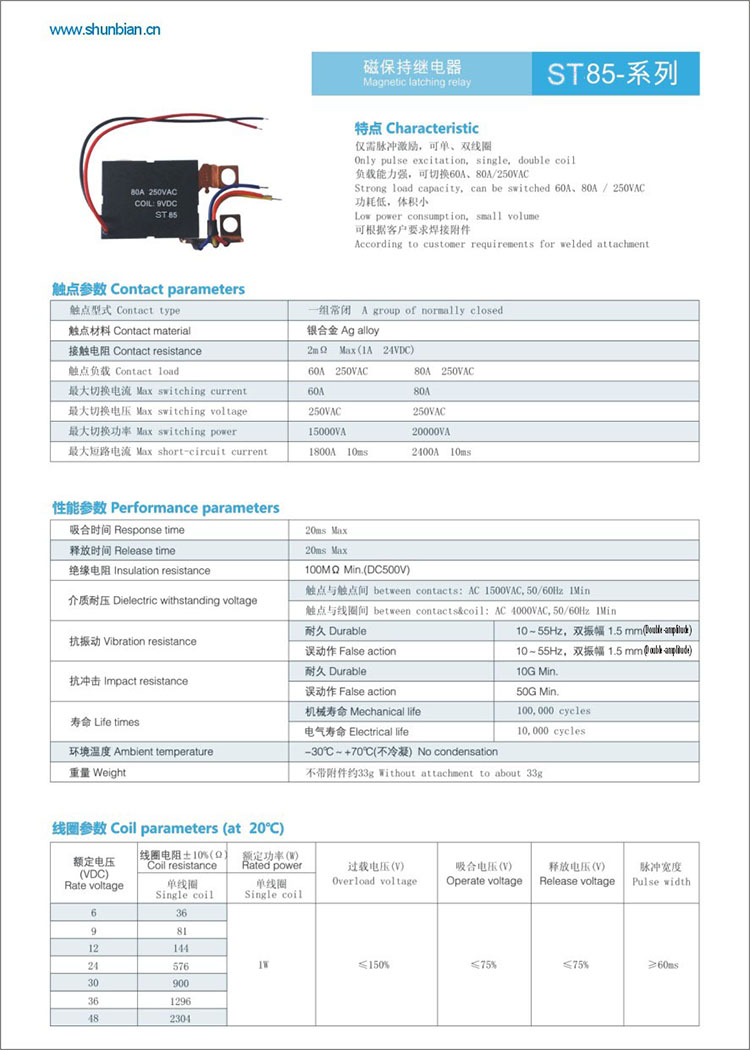

Model：ST85
Product Features：High contact capacity; designed and manufactured according to DINIEC255 standard; parts of 1-00/VDE0435and 201 are made
according to LVD requirement; this magnetic latching relay is featured by high damping resistance, single-coil relay and double-coil relay (optional).
Application：Electrical equipment; air conditioning plant; industrial machine

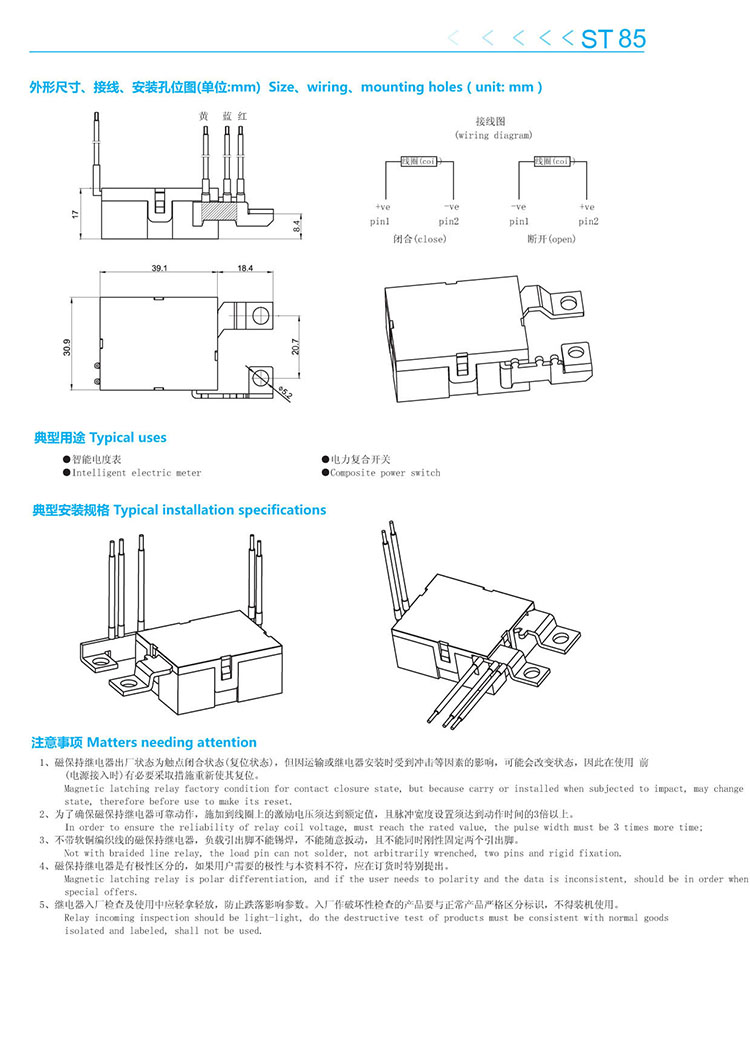

Dimension: L*W*H（mm）：38.8*28.8*15.0
Contact Form：1a,1C
Contact Capacity：25A 250VAC
Coil Voltage：5-48VDC
Coil Power（W）：1.0/2.0 1.5/3.0
Contact Resistance：≤50mΩ
Insulation Resistance：≥1,000MΩ
Service Life (Times)：electric 3*104
machinery 1*106
Medium Pressure：between break contacts 1,500VAC
between contacts 4,000VAC
Ambient Temperature：-40℃~+85℃
