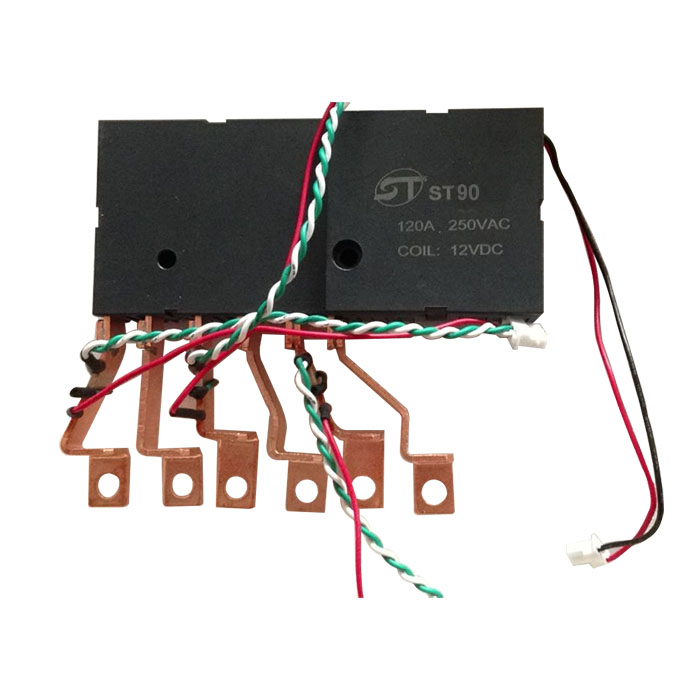

Model：ST90
Product Features：Product Features: 100A high contact load capacity; connection: 1,700A, 3,000A short-circuit current; switching power: 15KVA;
low consumption, power saving; impact resistance, large reliability; long service life; 3-phase relay for meters 。
Application：
applied to IC card electricity meter, industrial machines, electrical equipment, domestic appliances, etc.

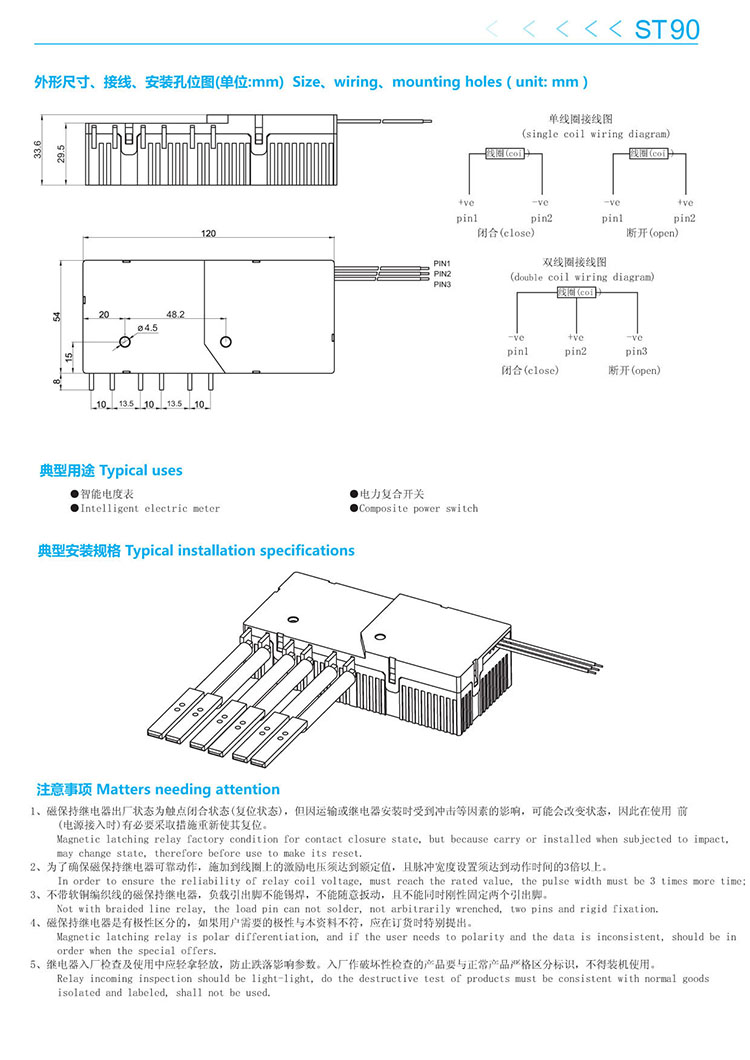

Dimension: L*W*H（mm）：33.6*54*120
Contact Form：1a
Contact Capacity：100A 380VAC
Coil Voltage：5-48VDC
Coil Power（W）：1.0/2.0
Contact Resistance：≤1.0mΩ
Insulation Resistance：≥1,000MΩ
Service Life (Times)：electric 1*104
　　　　　　　　　　 machinery 1*105
Medium Pressure：between break contacts 2,000VAC
　　　　　　　　　 between contacts 4,000VAC
Ambient Temperature：-30℃~+70℃
Installation Type：Connected by screw assembly or in accordance with customer demands
Weight: 350g without attachment
