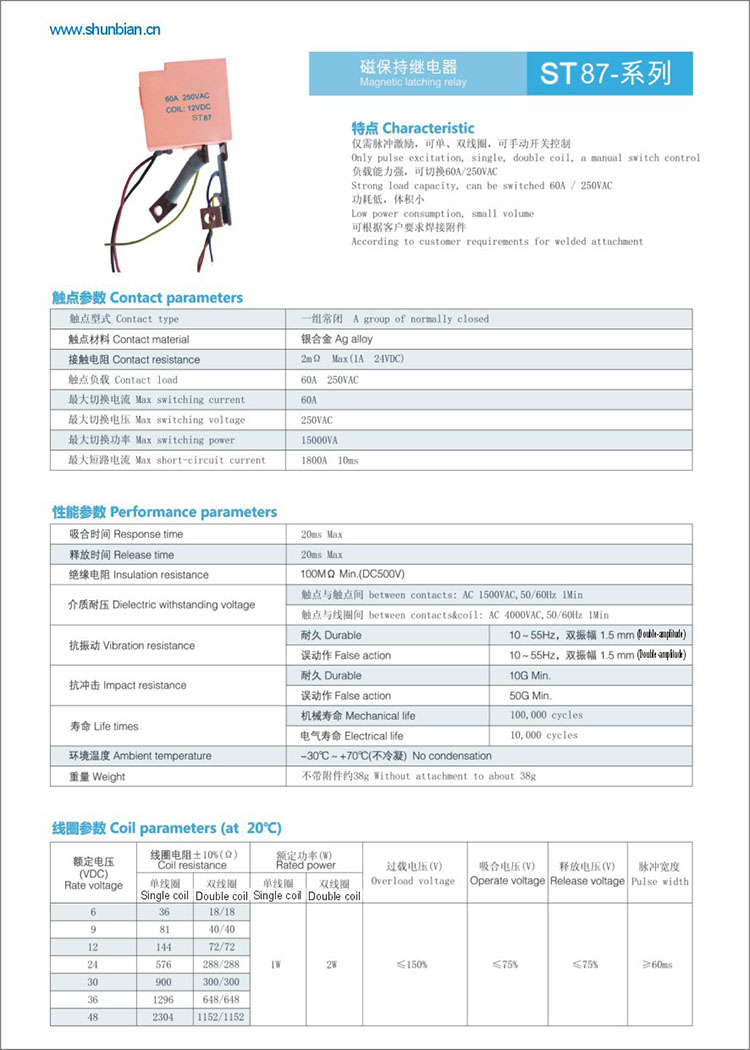

Model：ST87
Product Features：60A high contact load capacity
Connection: 1,700A, 3,000 short-circuit current; switching power: 15KVA; low consumption, power saving; impact resistance, large reliability;
long service life; single-coil relay and double-coil relay (optional).
Application：applied to IC card electricity meter, industrial machines, electrical equipment, domestic appliances, etc.

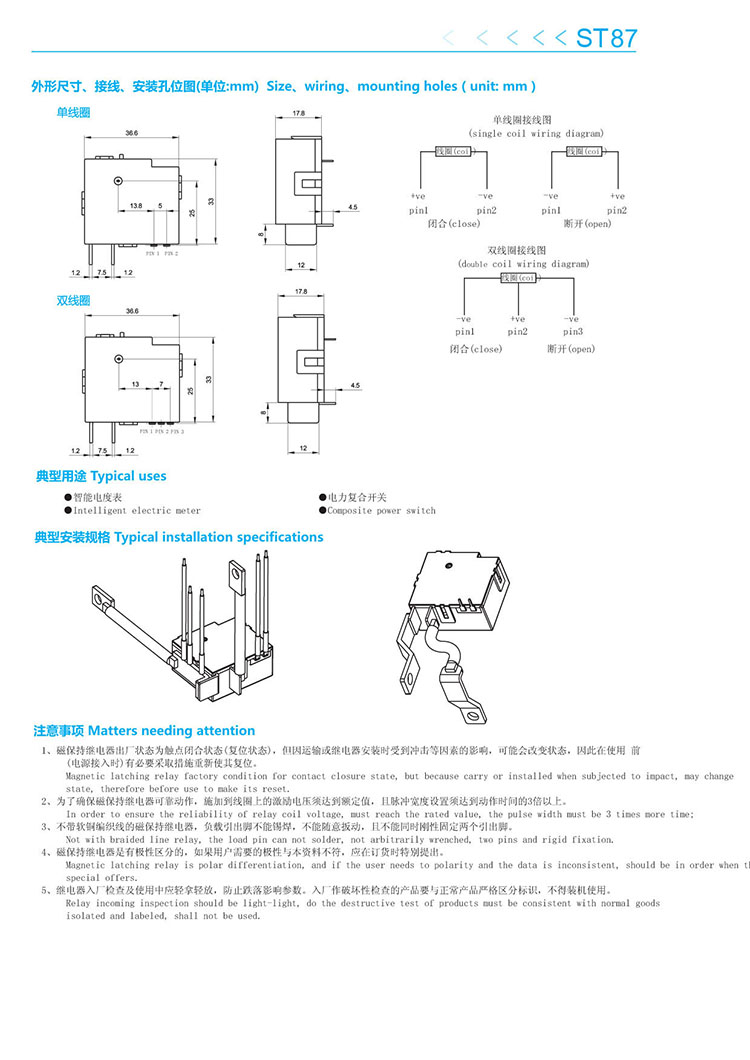

Dimension: L*W*H（mm）：36.6*33.0*17.6
Contact Form：1a Download
Contact Capacity：60A 250VAC
　　　　　　　　　50A 250VAC
Coil Voltage：5-48VDC
Coil Power：1.0/2.0 1.5/3.0
Contact Resistance：≤2.0mΩ
Insulation Resistance：≥1,000MΩ
Service Life (Times)：electric 1*104
　　　　　　　　　　 machinery 1*105
Medium Pressure：between break contacts 1,500VAC
　　　　　　　　　 between contacts 4,000VAC
Ambient Temperature：-40℃~+70℃
